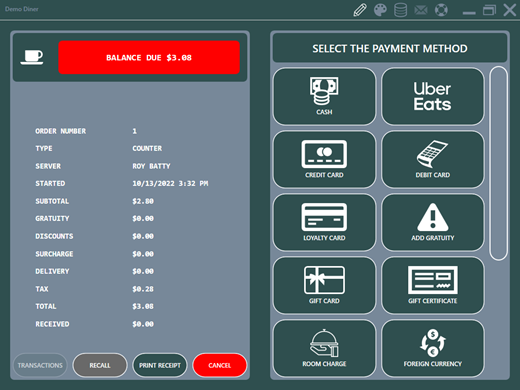

Payment methods are used to settle orders and displayed as a list on the settle screen. In addition, the CASH, CREDIT and CASH BANK payment methods are available on the order entry screen.









Default Payment Methods



The default payment methods created with a new database are:



• Bank Check
• Cash
• Credit Card
• Customer Account
• Debit Card
• Foreign Currency
• Gift Card
• Gift Certificate
• Loyalty Card
• Manual Credit
• Room Charge



In addition, the following payment methods are used internally and cannot be accessed on the settle screen:



• Account Payment
• Add Gratuity
• Cash Bank

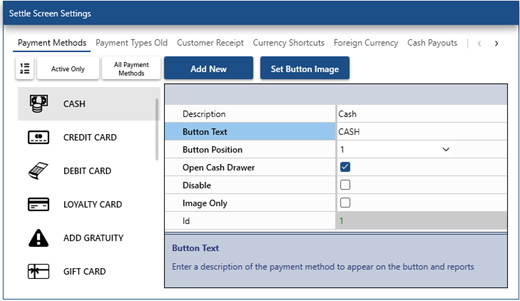

Each payment method can be edited in back office | settings | main settings | settle screen. The following settings are available for each default payment method:



• Description: Read only value that describes the payment method
• Button Text: The text that appears below the image on the settle screen button
• Button Position: Numeric value that determines the order in which the payment methods are displayed on the settle screen
• Open Cash Drawer:  When enabled, the cash drawer will open when a transaction is saved with this payment method
• Disable: Disable the payment method to hide it on the settle screen

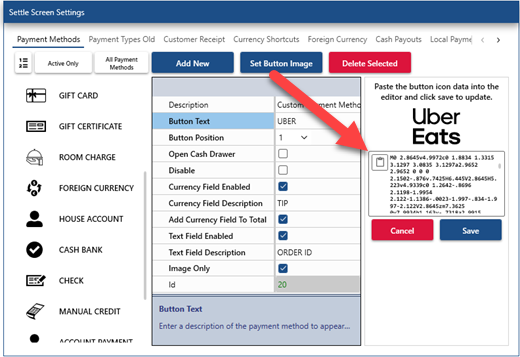

• Button Image: The icon that appears above the image on the settle screen button. The icon is a single SVG path that is displayed properly regardless of screen resolution. A list of commonly used images are available below. To change an image, copy the path data, click Set Button Image and paste the path data.
• Image Only: When enabled, the button text will not be displayed on the button
• Id: Numeric value used to query the TransactionTypes database table for custom reports







Custom Payment Methods

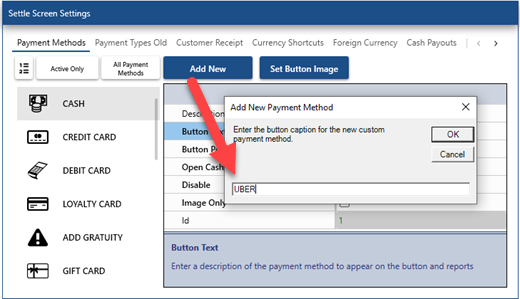

Custom payment methods can be created for specific requirements where the default payment methods cannot be used. For example, when using an online delivery platform such as Door Dash or Uber Eats, the order can be settled at the pos using a custom payment method for proper accounting and reports. Click Add New and enter the button text to create a custom payment method.

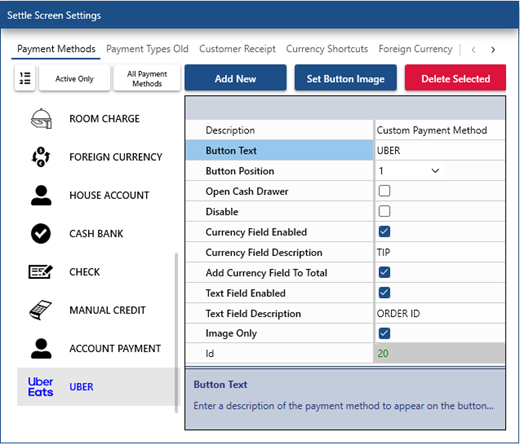

In addition to the default payment method settings described above, the following settings are available for the custom payment method:



• Currency Field Enabled: When enabled, a currency formatted box is displayed on the payment screen. This field is typically used to enter the gratuity or surcharge,
• Currency Field Description: The text displayed to the left of the currency field box
• Add Currency Field To Total: Automatically update the transaction amount to include the sum of the currency field value and the order's balance due.
• Text Field Enabled: When enabled, a numeric field is displayed on the payment screen. This field is typically used to enter the external order id or transaction id.
• Text Field Description:  The text displayed to the left of the text field box







Payment Button Images



The following SVG images are generated using a single path. Copy the data below and paste it into the image editor. Many of the examples below were generated using the IconPacks browser available at https://github.com/MahApps/IconPacks.Browser. Please contact support with your specific requirements.









	M18,12.15V3a1,1,0,0,0-2,0v9.15a4.16,4.16,0,0,0-3,4c0,2.05,1.52,5.8,4,5.8s4-3.75,4-5.8A4.16,4.16,0,0,0,18,12.15ZM17,20c-.8,0-2-2.27-2-3.8A2.11,2.11,0,0,1,17,14a2.11,2.11,0,0,1,2,2.2C19,17.73,17.8,20,17,20ZM10,2A1,1,0,0,0,9,3V8.46L8,9.13V3A1,1,0,0,0,6,3V9.13L5,8.46V3A1,1,0,0,0,3,3V9a1,1,0,0,0,.45.83L6,11.54V21a1,1,0,0,0,2,0V11.54l2.55-1.71A1,1,0,0,0,11,9V3A1,1,0,0,0,10,2Z
	M0 7.97v4.958c0 1.867 1.302 3.101 3 3.101.826 0 1.562-.316 2.094-.87v.736H6.27V7.97H5.082v4.888c0 1.257-.85 2.106-1.947 2.106-1.11 0-1.946-.827-1.946-2.106V7.971H0zm7.44 0v7.925h1.13v-.725c.521.532 1.257.86 2.06.86a3.006 3.006 0 0 0 3.034-3.01 3.01 3.01 0 0 0-3.033-3.024 2.86 2.86 0 0 0-2.049.861V7.971H7.439zm9.869 2.038c-1.687 0-2.965 1.37-2.965 3 0 1.72 1.334 3.01 3.066 3.01 1.053 0 1.913-.463 2.49-1.233l-.826-.611c-.43.577-.996.847-1.664.847-.973 0-1.753-.7-1.912-1.64h4.697v-.373c0-1.72-1.222-3-2.886-3zm6.295.068c-.634 0-1.098.294-1.381.758v-.713h-1.131v5.774h1.142V12.61c0-.894.544-1.47 1.291-1.47H24v-1.065h-.396zm-6.319.928c.85 0 1.564.588 1.756 1.47H15.52c.203-.882.916-1.47 1.765-1.47zm-6.732.012c1.086 0 1.98.883 1.98 2.004a1.993 1.993 0 0 1-1.98 2.001A1.989 1.989 0 0 1 8.56 13.02a1.99 1.99 0 0 1 1.992-2.004z
	M0 2.8645v4.9972c0 1.8834 1.3315 3.1297 3.0835 3.1297a2.9652 2.9652 0 0 0 2.1502-.876v.7425H6.445V2.8645H5.223v4.9339c0 1.2642-.8696 2.1198-1.9954 2.122-1.1386-.0023-1.997-.834-1.997-2.122V2.8645zm7.3625 0v7.9934h1.163v-.7318a2.9915 2.9915 0 0 0 2.1177.876c1.714.048 3.1295-1.3283 3.1295-3.0429s-1.4155-3.091-3.1295-3.0429a2.9674 2.9674 0 0 0-2.107.876V2.8645zm9.8857 2.0561c-1.6752-.0074-3.0369 1.3492-3.0356 3.0245 0 1.7366 1.3732 3.0373 3.1537 3.0373a3.123 3.123 0 0 0 2.5578-1.2438l-.8495-.6177a2.0498 2.0498 0 0 1-1.7083.8585c-.9763.0126-1.8147-.6915-1.971-1.6553h4.818v-.379c0-1.734-1.254-3.0238-2.9638-3.0245zm6.1632.0667a1.5943 1.5943 0 0 0-1.376.7657v-.7186h-1.163v5.8235h1.1741V7.5465c0-.9023.5581-1.4847 1.3268-1.4847h.4949V4.9886c-.1576.0013-.3186-.0009-.4568-.0013zm-6.2034.944a1.844 1.844 0 0 1 1.8337 1.486H15.424a1.844 1.844 0 0 1 1.784-1.486zm-6.6589.0056c1.1223-.0084 2.0365.8992 2.0364 2.0215-.0026 1.1203-.914 2.0258-2.0343 2.021a2.0151 2.0151 0 0 1-1.4159-.5987A2.0152 2.0152 0 0 1 8.55 7.9592a2.0152 2.0152 0 0 1 .5838-1.422 2.0152 2.0152 0 0 1 1.4153-.6003zM0 12.9864v7.9716h5.7222v-1.3666H1.5458v-1.971h4.0647v-1.314H1.5458v-1.9556h4.1764v-1.3644zm14.5608.4097v1.6861h-1.1519v1.338h1.1545v3.143c0 .7927.5712 1.4209 1.6005 1.4209h1.6425L17.8 19.646h-1.1412c-.3482 0-.5714-.1509-.5714-.464v-2.7683H17.8v-1.3316h-1.7062v-1.686zm-5.2974 1.5275c-1.7348-.0103-3.141 1.4035-3.1214 3.1382.0196 1.7346 1.4575 3.1163 3.1915 3.0668a2.9915 2.9915 0 0 0 1.912-.6655v.532h1.5175v-5.9129h-1.509v.5257a3.0047 3.0047 0 0 0-1.9205-.6835c-.0244-.0007-.0492-.0006-.0701-.0008zm11.771.0077c-1.5855 0-2.7002.6437-2.7002 1.8854 0 .8607.6132 1.4213 1.936 1.695l1.4478.3286c.5694.1095.7224.2585.7224.4906 0 .3701-.438.6022-1.1279.6022-.876 0-1.3774-.1907-1.5723-.8477h-1.533c.219 1.2307 1.1563 2.05 3.0484 2.05h.0022c1.752 0 2.7422-.819 2.7422-1.9534 0-.8059-.5847-1.4084-1.8089-1.6668l-1.2943-.2605c-.7511-.1358-.988-.2738-.988-.5454 0-.357.3616-.5757 1.0295-.5757.7227 0 1.2527.1925 1.406.8473h1.5175c-.0854-1.2286-.9899-2.0497-2.8273-2.0497zM9.467 16.1815c1.0092.0096 1.8188.8369 1.8067 1.8461.0014 1.0046-.8198 1.816-1.8243 1.8025-1.0075-.0048-1.8203-.8256-1.8155-1.833.0048-1.0076.8255-1.8204 1.833-1.8156z
	M11.754 0a3.998 3.998 0 00-2.049.596L3.33 4.532a4.252 4.252 0 00-2.017 3.615v8.03c0 1.473.79 2.838 2.067 3.574l6.486 3.733a3.88 3.88 0 003.835.018l7.043-3.966a3.817 3.817 0 001.943-3.323V7.752a3.57 3.57 0 00-1.774-3.084L13.817.541a3.998 3.998 0 00-2.063-.54zm.022 1.674c.413-.006.828.1 1.2.315l7.095 4.127c.584.34.941.96.94 1.635v8.462c0 .774-.414 1.484-1.089 1.864l-7.042 3.966a2.199 2.199 0 01-2.179-.01l-6.485-3.734a2.447 2.447 0 01-1.228-2.123v-8.03c0-.893.461-1.72 1.221-2.19l6.376-3.935a2.323 2.323 0 011.19-.347zm-4.7 3.844V18.37h2.69v-5.62h4.46v5.62h2.696V5.518h-2.696v4.681h-4.46V5.518Z
	M8.428 1.67c-4.65 0-7.184 4.149-7.184 6.998 0 2.294 2.2 3.299 4.25 3.299l-.006-.006c4.244 0 7.184-3.854 7.184-6.998 0-2.29-2.175-3.293-4.244-3.293zm11.328 0c-4.65 0-7.184 4.149-7.184 6.998 0 2.294 2.2 3.299 4.25 3.299l-.006-.006C21.061 11.96 24 8.107 24 4.963c0-2.29-2.18-3.293-4.244-3.293zM14.172 14.52l2.435 1.834c-2.17 2.07-6.124 3.525-9.353 3.17A8.913 8.913 0 01.23 14.541H0a9.598 9.598 0 008.828 7.758c3.814.24 7.323-.905 9.947-3.13l-.004.007 1.08 2.988 1.555-7.623-7.234-.02Z
	M12.878,5.92841a.297.297,0,0,1,.31378.335c.002.09192.00348.18384.0036.27575.00061.59241-.00238,1.18488.00208,1.77723.00329.43353.07947.517.49939.56909a14.83182,14.83182,0,0,0,3.14795-.04578,4.94837,4.94837,0,0,0,1.57287-.37384.50722.50722,0,0,0,.34461-.60242,6.83113,6.83113,0,0,0-5.3432-5.71106,6.60826,6.60826,0,0,0-3.64844.243A6.718,6.718,0,0,0,7.07709,4.147,6.27211,6.27211,0,0,0,5.23022,8.43164,11.18781,11.18781,0,0,0,6.7558,13.9494a1.34216,1.34216,0,0,0,1.32989.74726c.65332-.01569,1.30732-.00354,1.96106-.00354v-.00348q1.04187,0,2.08368.00048c.24927.00055.44654.06012.44458.37226-.00458.72522.00067,1.45044-.00335,2.1756-.00129.22015-.06324.432-.32612.43408-.26391.00207-.32641-.20893-.32971-.42951-.00512-.34716.00019-.69452.00061-1.04174.00049-.45105-.07342-.55677-.52319-.639a7.70231,7.70231,0,0,0-2.348-.0199,2.5959,2.5959,0,0,0-.80054.19476c-.21185.09973-.29608.24506-.19318.46729.10706.23126.20691.46728.3332.68786a43.875,43.875,0,0,0,3.42651,4.95569c.15393.19947.27313.20362.43109.0105.34869-.42639.71491-.83856,1.05994-1.26788a34.22649,34.22649,0,0,0,3.57635-5.25989,14.17129,14.17129,0,0,0,1.49451-3.87146A1.20324,1.20324,0,0,0,17.36145,9.824,6.94268,6.94268,0,0,0,15.691,9.66235c-.909-.00677-1.81812-.00348-2.72717-.00268-.24481.00024-.42688-.07007-.42707-.3573-.00048-1.01117-.00183-2.0224.00184-3.03351C12.53943,6.053,12.64349,5.92041,12.878,5.92841Z
	M1111 896c13 -133 -43 -213 -131 -258c146 -35 238 -122 220 -317c-23 -243 -203 -308 -461 -322v-255h-154v251c-39 0 -80 0 -122 1v-252h-154v255c-36 0 -72 1 -109 1h-200l31 183c113 -2 111 0 111 0c43 0 55 31 58 51v402h16c-6 1 -12 1 -16 1v287 c-6 32 -26 68 -89 68c0 0 2 2 -111 0v164l212 -1c31 0 64 0 97 1v252h154v-247c41 1 82 2 122 2v245h154v-252c198 -17 355 -78 372 -260zM896 351c0 198 -326 169 -430 169v-338c104 0 430 -22 430 169zM825 827c0 181 -272 154 -359 154v-307c87 0 359 -20 359 153z
	M1064 623l-532 -325l-532 325l532 913zM532 194l532 325l-532 -775l-532 775z
	M1597 633c0 -46 -7 -81 -21 -106c-12 -22 -31 -35 -52 -35c-15 0 -29 3 -41 9v224c26 27 49 30 57 30c38 0 57 -42 57 -122zM2035 669h-110c4 67 22 98 56 98s52 -32 54 -98zM476 534c0 84 -51 119 -134 149c-44 16 -68 29 -68 49c0 17 14 26 38 26c46 0 92 -17 124 -33 l18 112c-25 12 -77 32 -149 32c-51 0 -93 -13 -123 -38c-32 -26 -48 -64 -48 -109c0 -82 50 -118 132 -147c52 -19 70 -32 70 -53c0 -20 -17 -31 -48 -31c-38 0 -101 19 -142 43l-18 -113c35 -20 100 -41 168 -41c54 0 98 13 129 37c34 27 51 66 51 117zM771 749l19 111h-96 v135l-129 -21l-18 -114l-46 -8l-17 -103h62v-219c0 -57 15 -96 44 -120c25 -20 61 -30 111 -30c39 0 62 7 79 11v118c-9 -2 -30 -7 -44 -7c-29 0 -42 16 -42 50v197h77zM1087 724v139c-10 2 -19 3 -28 3c-42 0 -76 -22 -89 -62l-10 56h-131v-471h150v306c19 23 46 31 82 31 c8 0 16 0 26 -2zM1124 389h150v471h-150v-471zM1746 638c0 80 -15 141 -45 179c-27 35 -64 52 -111 52c-43 0 -81 -18 -117 -56l-8 47h-132v-645l150 25v151c23 -7 47 -11 68 -11c37 0 92 10 134 56c41 44 61 112 61 202zM1278 986c0 44 -35 79 -79 79s-79 -35 -79 -79 s35 -80 79 -80s79 36 79 80zM2176 629c0 75 -16 134 -48 176c-33 42 -82 64 -144 64c-128 0 -207 -94 -207 -246c0 -84 21 -148 63 -188c37 -37 91 -55 161 -55c64 0 123 15 160 40l-16 103c-37 -20 -80 -31 -128 -31c-29 0 -49 6 -63 19c-16 13 -25 35 -28 66h248 c1 7 2 41 2 52zM2304 1280v-1280c0 -70 -58 -128 -128 -128h-2048c-70 0 -128 58 -128 128v1280c0 70 58 128 128 128h2048c70 0 128 -58 128 -128z
	M405 864c20 0 40 -10 52 -26c175 -239 297 -495 362 -774h-446c-80 278 -198 532 -367 749c-16 21 0 51 26 51h373zM964 507c-33 -135 -75 -266 -125 -393c-53 209 -138 405 -256 594c26 145 41 294 44 449c141 -227 253 -443 337 -650zM1063 1216 c299 -412 521 -920 569 -1472h-451c-33 534 -279 1040 -553 1472h435zM1756 640c0 -278 -38 -570 -101 -812c-44 370 -166 738 -359 1083c-17 202 -53 398 -106 584c-5 21 10 41 31 41h359c28 0 54 -19 61 -46c76 -270 115 -556 115 -850z
	M1510 890c13 -60 10 -129 -4 -204c-65 -330 -284 -444 -565 -444h-44c-34 0 -62 -25 -68 -59l-4 -19l-55 -346l-2 -15c-7 -34 -35 -59 -69 -59h-251c-28 0 -46 23 -42 51c18 112 35 224 53 336s36 223 54 335c3 24 19 37 43 37c40 0 80 1 131 0c72 -1 155 3 236 21 c108 24 206 68 287 144c73 68 122 152 155 246c15 44 27 88 35 133c2 12 5 10 12 5c55 -41 86 -96 98 -162zM1338 1172c0 -82 -19 -160 -46 -236c-52 -151 -150 -259 -302 -315c-81 -29 -166 -41 -252 -42c-60 -1 -120 0 -180 0c-65 0 -106 -32 -118 -96 c-14 -76 -69 -430 -85 -530c-1 -7 -4 -10 -12 -10h-295c-30 0 -52 26 -48 55l232 1471c6 38 40 67 79 67h598c43 0 142 -19 209 -45c142 -55 220 -167 220 -319z
	M1760 1408c88 0 160 -72 160 -160v-1216c0 -88 -72 -160 -160 -160h-1600c-88 0 -160 72 -160 160v1216c0 88 72 160 160 160h1600zM160 1280c-17 0 -32 -15 -32 -32v-224h1664v224c0 17 -15 32 -32 32h-1600zM1760 0c17 0 32 15 32 32v608h-1664v-608 c0 -17 15 -32 32 -32h1600zM256 128v128h256v-128h-256zM640 128v128h384v-128h-384z
